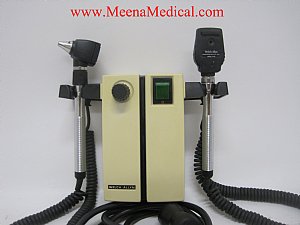

Welch Allyn 74710 Oto/Oph 3.5V Wall Transformer w/ Heads - Preowned in Good Condition

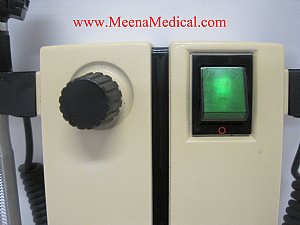

Welch Allyn 74710 Opthalmoscope and Otoscope powers up and with transformer unit on, instruments will light automatically when handles are lifted from holder. Adjust rheostat knob until desired lamp brilliance is obtained. Turning rheostat clockwise increases light, counterclockwise decreases light.
A built-in, automatic voltage regulator provides maximum illumination and lamp life. The instrument's lamp is automatically turned off when handle is replaced on holder. Transformer may be turned off by turning the switch off. Pilot light alone draws current when instruments are not in use. When unit is not in use for more than a few hours, turn switch to off position to insure longer operating life. Unit can be left plugged in permanently.

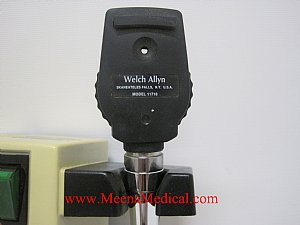

Welch Allyn 3.5V Ophthalmoscope Head
Halogen light for over three times the light intensity of ordinary lamps
Accurate observation of tissue color
Longer lamp life
Aperture range includes large spot, pinhole fixation and red-free.
Mirror optical system and wide choice of viewing lenses.
Halogen light for true tissue color and consistent, long-lasting illumination
Rubber brow rest prevents scratching of eyeglasses
Illuminated lens dial clearly identifies setting

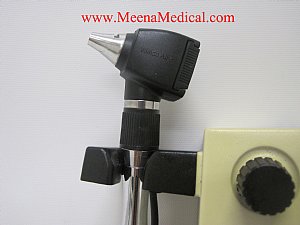

Welch Allyn 3.5V Otoscope Head
Halogen HPX™ lamp produces 30% brighter, whiter light for true tissue color
Fiber optics project cool light to the distal tip with no reflections or obstructions
Wide-angle viewing lens allows for instrumentation under magnification
Sealed system for pneumatic otoscopy and accurate diagnosis of otitis media

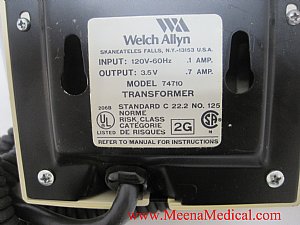

Power input: 120V/60Hz
Power output: 3.5 Volts
Qty 1 - Welch Allyn 74710 Otoscope Wall Transformer
Qty 1 - Welch Allyn 3.5V Ophthalmoscope Head
Qty 1 - Welch Allyn 3.5V Otoscope Head
Only items specified in the contents section are available with product.
Cosmetic - Good
Working - Good
