VENDOR DESCRIPTION

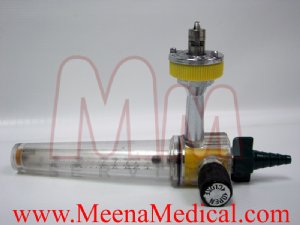

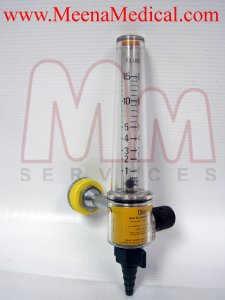

The Pressure Compensated Flowmeter is designed to meet strict standards of durability and precision. The base is constructed of solid aluminum and finished in a clear anodized plating. The flow control valve consists of a precision needle valve threaded into a brass seat. This provides extended resistance to wear and corrosion. The flowtube and shroud are made of clear polycarbonate
Flowmeters are available with a wide variety of options including DISS Power outlets and twin flowmeter configurations. They are also available with an optional plastic DISS tubing nipple and a multitude of wall adapters.
FEATURES
Provides accurate gas flow measurement and control within a range of 1-15 L/min
For use in a variety of respiratory therapy clinical application
Features large easy to read increments with an expanded 1-5 L/min range for improved readability at low flows
Dual taper and rear surface textured to enhance readability
Flush setting delivers a minimum of 65 L/min
Supply pressure of 50 psi
Durable
Impact resistant flowtube and shroud
Solid aluminum body with clear anodized plating
DISS outlet thread with protection rim
Precise
Pressure compensated, accurate flow readings
Flowtubes individually tested for accuracy
High precision glass ball ensures maximum repeatability
Double scale eliminates optical distortion
Safety
Shroud locks onto the base with inlet adapter;
Prevents loosening, leaks, and possibility of ejecting shroud when pressurized
Knob and needle valve have a stop to prevent entire component from unscrewing completely
Color coded to help prevent cross connections
Easy to maintain
Lifetime warranty on flowtube and shroud
Complete needle valve assembly kits available
Discounted replacement parts kits available
CONTENTS
Qty 1 - 1-15 L/min Air Flowmeter
Only items specified in the contents section are available with product. If questions please feel free to contact us
CONDITION
Cosmetic - Excellent
Working - Not tested
Please contact us for more information.
