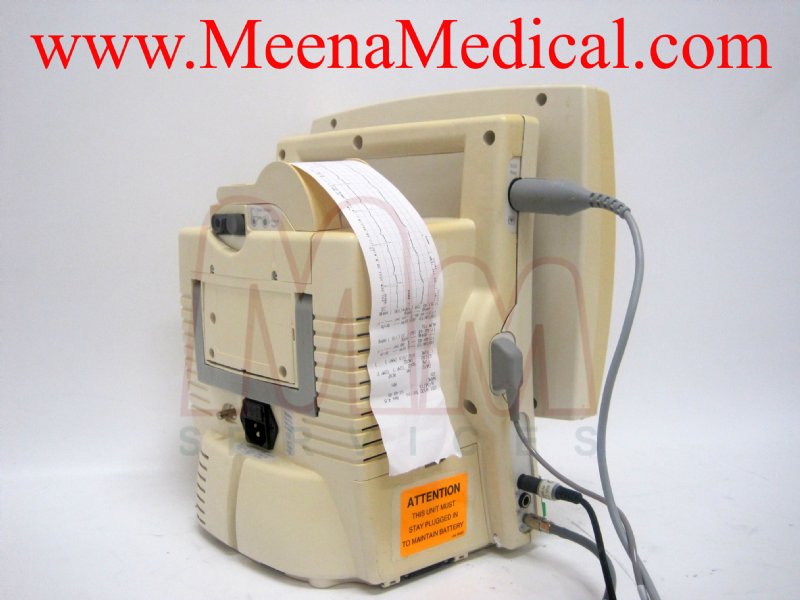

Criticare 8100 Poet Plus Vital Signs CO2 Veterinary Monitor - Preowned in Good Condition
VENDOR DESCRIPTION
Poet Plus® 8100 is the perfect choice for busy departments demanding maximum flexibility, unsurpassed ease of use, and accurate, reliable performance. Respond to every monitoring need, from standard vital signs to conscious sedation. Monitor adults, pediatrics, and neonates in virtually every department, at bedside or in transit. The Poet Plus 8100 mounts quickly and easily to walls, roll stands, and bedrails.
With the compact, lightweight Poet Plus 8100, you focus on your patients, not your monitor. The innovative user interface with simple, one-level menus and dedicated function keys ensures super-fast set-up. The big, bright display with large numerics is easily seen, even from across the room.
FEATURES
Easy-to-read 10.4" active TFT color display
View up to 6 waveforms simultaneously.
Easy to learn, easy to use menus, dedicated function keys, and simplified controls
Smart battery management with rechargeable "hot-swappable" sealed lead acid batteries
Lightweight design and versatile mounting options
Adapts readily to department and transport requirements
SPECIFICATIONS
System Outputs
Communication Ports: RS-232 compatible; DB9, analog mini-din
Nurse Call: contact switch, stereo jack 3.5 mm, length 14 mm standard
Defib / Sync: BNC connector
Video Port: high density D-sub 15-pin
Recorder
Type: Thermal Line Printer
Paper speed: 12.5, 25, 50mm/sec
Mechanical
Weight: Base unit without batteries: 12 lbs, 5.45kg
Size: Base unit: 13.25 "(H) x 12.5" (W) x 8.75 "(D)
Power Requirements
Voltage: 100, 120, 220, 240 VAC, 50/60 Hz
Consumption: 35 W, typical
Batteries: 2, Sealed Lead Acid, life: 2 hr, typical recharge time: 4.5 hours
ECG
Connectors: 3- or 5-lead
Leads: User-selectable; I, II, III, aVR, aVL, aVF, V (5-lead); I, II, or III (3-lead)
Gain Selection: 1/2mV, 2mV, 4mV
Frequency Response:
- Diagnostic: 0.05 to 100 Hz (-3db);
- Monitor: 0.5 to 40 Hz (-3db)
Sweep Speed: 12.5, 25, 50mm/sec
Electrosurgery Protection: Yes
Defibrillator Protection: Yes
Pacer Detection/Rejection: Yes
Non-Invasive Blood Pressure
Technique: Oscillometric measure upon inflation
Automatic Measurement Cycles: 2, 3, 5, 10, 15, 30 min; 1, 2, 4 hr
Measurement Range: Adult: 30 to 300mmHg; Neonate: 0 to 150 mmHg
Resolution: 1mmHg
Transducer Accuracy: ±2mmHg or ±2% of reading, which ever is greater, over full range
STAT mode: 5 min of consecutive readings
Pulse Oximetry
Range: 1% to 99%
Resolution: 1%
Accuracy: 70% to 99% range: ±2%; 50% to 69% range: ±3%; <50%: unspecified
Method: Dual wavelength LED
Heart (Pulse) Rate
Source: ECG (primary); IBP, Pleth; NIBP
Range: 20 to 300bpm
Accuracy: ±1bpm or ±1% (ECG, IBP, SPO2 only)
Temperature
Channels: 2
Range, Accuracy:
68° to 94.8° F: ±0.5%;
95° to 107.4° F (35° to 41.9° C): ±0.2%;
107.6° to 113° F (42° to 45° C): ±0.5%
Probe: YSI-400 and YSI-700 series
Respiration
Rate: 6 to 150 breaths/min
Resolution: 1 breath/min
Accuracy: ±1% or ±1 breath/min, whichever is greater
Source: User selectable: Smart, CO2, ECG-TTI
CO2
Units: mmHg; Torr; %; kPa
Waveform Scale: 0 to 3.13%, 0 to 6.25%, 0 to 12.5% and 0 to 25%
Method: Non-dispersive infrared; auto calibrating
N2O Compensation: Manual; On/Off, user selectable
Range: 0 to 99mmHg; 0 to 99 Torr; 0 to 12.5%; 0 to 12.5 kPa
Resolution: 1mmHg; 1 Torr; 0.1%; 0.1 kPa
Sample Rate: Sidestream, selectable: 150ml/min or 50ml/min
Accuracy:
+2mmHg, ±0.3 volume %, ±0.3 kPa, or ±2 Torr at 150ml/min and respiratory rate of ±35 breaths/min
Rise Time: 350ms at 150ml/min (10 to 90%)
RESOURCES
Criticare 8100 Poet Plus Vital Signs Brochure

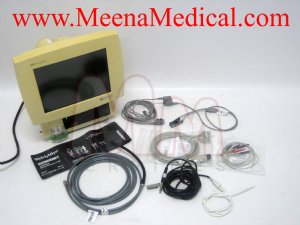

CONTENTS
Qty - 1 Criticare 8100 Poet Plus Vital Signs Monitor 81C001P (CO2 with Printer)
Qty - 1 Criticare SpO2 Extension Cable and Sensor with Ear Clip Attachment
Qty - 1 AMC 3-Lead ECG Cable CB-71320R (NEW)
Qty - 1 AMC 3-lead DIN to Snap Leadset LW-2090024/3A (NEW)
Qty - 1 Small Blood Pressure Cuff and Hose
Qty - 1 YSI Temperature Probe C400-10 Reusable Cable with Sensor
Only items specified in the contents section are available with product.
CONDITION
Cosmetic - Good
Working - Good
Please contact us for any more information
