VENDOR DESCRIPTION
The Compact Monitor retains many of the features that made earlier DINAMAP® Models such a huge success. The unique patented motion artifact rejection system, which ensures accuracy even when the patient moves, is still there, as are the STAT feature, systolic search and intelligent inflation capability. As before, dual hose technology enhances monitor sensitivity in extreme hypotensive situations.
DINAMAP® Compact Monitor is a device capable of monitoring vital signs, including blood pressure (NIBP), blood oxygen levels (SpO2) and predictive body temperature. Suitable for adult, pediatric, and neonatal use. The Compact offers unparalleled accuracy and sensitivity for monitoring hypertensive patients. This model handles patient movement very well.
Dinamap Compact monitors provide noninvasive determination of systolic blood pressure, diastolic blood pressure, mean arterial pressure, pulse rate, temperature, and oxygen saturation. This portable AC- and DC- operated monitor is primarily intended for use in hospital acute care settings such as outpatient surgery, accident and emergency, labor and delivery, GI/endoscopy, and medical/surgical units.

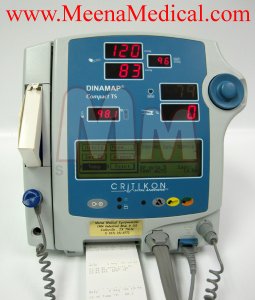

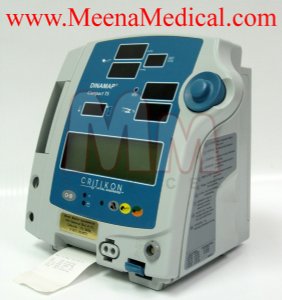

The 117216: DINAMAP® Compact Monitor Model TS measures BP, SpO2, Pulse, Predictive Temp and Printer.
FEATURES
Allows you to take all connected vitals with the press of one button
STAT mode for rapid BP readings in emergency situations
Single determinations or automatic monitoring of blood pressure
User-adjustable target inflation pressure
Powerful, lightweight and easy to use.
STAT NIBP allows interval BP monitoring.
Display shows last 3 NIBP determination.
Unparalleled accuracy for monitoring hypertensive patients
Remarkable sensitivity for monitoring hypertensive patients
Continuous outstanding reputation for reliability
Suitable for adult, pediatric and neonatal use
Maintains accuracy even when the patient moves
Allows you to take all connected vitals with the press of one button
STAT mode for rapid BP readings in emergency situations
Single determinations or automatic monitoring of blood pressure
Oral/rectal predictive temperature
Built-in printer
Trends store up to 100 past signs readings
SPECIFICATIONS
Cuff Pressure Range:
Adult: 0 to 290 mmHg
Neonate: 0 to 140 mmHg
Default Target: Cuff Inflation
Adult: 180 ± 15 mmHg
Neonate: 110 ± 15 mmHg
Target Cuff Inflation: Adjustment Range (in 5 mmHg increments)
Adult: 100 to 250 mmHg
Neonate: 100 to 140 mmHg
Blood Pressure Measurement:
Range (mmHg) Systolic MAP Diastolic
Adult 30-215 15-215 10-195
Neonate 40-140 20-100 20-100
Maximum Determination Time:
Adult: 120 s
Neonate: 85 s
Overpressure Cutoff:
Adult: 300 to 330 mmHg
Neonate: 150 to 165 mmHg
Pulse Rate Range:
30 to 200 beats/min
Pulse Rate Accuracy: ± 3.5%
Sp02: Functional Oxygen Saturation:
Range: 0% to 100%
Accuracy: 0% to 69%; unspecified
Dimensions:
Height: 9.1" | 23.0 cm
Width: 7.3" | 18.5 cm
Depth: 6.9" | 17.5 cm
Weight, Including Battery: 8.3 lb | 3.75 kg
RESOURCES
Critikon Dinamap Compact Operation Manual
CONTENTS

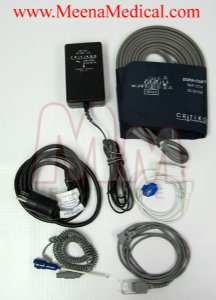

Qty 1 - 117216: DINAMAP® Compact Monitor Model TS
Qty 1 - New Blood pressure cuff set
Qty 1 - New Finger probe sensor
Qty 1 - Temperature probe
If it is not specified here don't assume you will be getting it.
CONDITION
Cosmetic - Good
Working - Good
Please contact us for any more information
